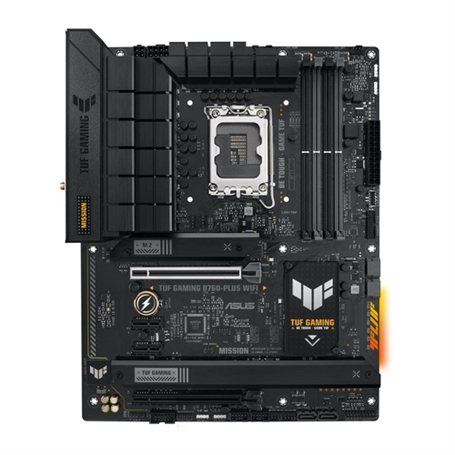

Asus tuf gaming B760-Plus wifi intel B760 lga 1700 atx
ASUS TUF GAMING B760-PLUS WIFI LGA
Acquista sicuro: Assistenza post-vendita e pagamento sicuro Bonifico, Paypal e Carta di credito
GSPR: Sicurezza dei Prodotti e Conformità
Scheda tecnica
Asus TUF B760 Plus Gaming e' una scheda madre con chipset Intel B760, 4 slot di RAM DDR5 e 3 M.2.
Asus TUF B760 Plus Gaming e' una scheda madre con chipset Intel B760, 4 slot di RAM DDR5 e 3 M.2.
Audio | |
| Modello | Realtek 7.1 Surround Sound High Definition Audio CODEC |
Chipset | |
| Modello | Intel B760 Chipset |
Connessioni LAN | |
| WiFi | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax |
| Bluetooth | Bluetooth® v5.2 |
Connettori I/O | |
| RGB Header | 3 x Addressable Gen 2 headers - 1 x Aura RGB header |
| M.2 | 3 |
| CPU OPT Fan | 1 |
| USB 3.2 Gen 2 | 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) |
| USB 3.2 Gen 1 | 1 x USB 3.2 Gen 1 |
| SATAIII | 4 |
| 8-pin ATX 12V | 1 |
| 4-pin ATX 12V | 1 |
| 24-pin ATX | 1 |
| CPU Fan connectors | 1 |
| Chassis Fan | 4 |
| AIO Pump connector | 1 |
Formato | |
| Standard | ATX Form Factor 12 inch x 9 6 inch ( 30.5 cm x 24.4 cm ) |
I/O Posteriore | |
| LAN (RJ45) | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| USB 3.2 Gen 2 | 1 x USB 3.2 Gen 2x2 port (1 x USB Type C) - 1 x USB 3.2 Gen 2 port (1 x Type-A) |
| HDMI | 1 |
| Audio | 5 |
| Display Port | 1 |
Memorie | |
| Numero Slot | 4 x DIMM, Max. 128GB, DDR5 |
Slot | |
| PCI-Ex 5.0 x16 | 1 x PCIe 5.0 x16 slot |
| PCI-Ex 3.0 x16 | 1 x PCIe 3.0 x16 slot (supports x4 mode) |
| PCI-Ex 3.0 x1 | 2 |
Supporto CPU | |
| CPU | Intel Socket LGA1700 for 12/13th Ge Intel Core, Pentium Gold and Celeron |
