Performance senza compromessi

Designed for small and medium-sized enterprises , the DGS -1210 Smart + guarantee functionality, security and ease of management for a fraction of the standard cost of ownership.

Il design permette più. flessibilità. nell&rsquo.allocazione dell&rsquo.energia per una varietà. di device con costi di installazione contenuti.

Management Facilitato

Questa serie di Smart+ Switch è. progettata per un management facilitato.

Tutte le configurazioni possono essere fatte attraverso un&rsquo.interfaccia web, indipendentemente dal sistema operativo utilizzato. Inoltre, l&rsquo.interfaccia web contiene 10 lingue diverse per rendere le operazioni più. intuitive.

PoE

La serie DGS-1210 Smart+ include un range di switch ad alto power budget pensati per le imprese che vogliono alimentare telefoni VoIP, access point wireless o videocamere IP.

Risparmio Energetico

La serie di Switch DGS-1210 Smart+ Gigabit è. l&rsquo.ultima generazione di Switch Smart+ D-Link con tecnologia D-Link Green 3.0. La serie offre un alto livello di risparmio energetico ed efficienza, e risponde anche allo standard IEEE 802.3az Energy Efficient Ethernet. .

The DGS-1210 Series Gigabit Smart Managed Switches consists of:

DGS-1210-10: 10-Port Gigabit Smart Managed Switch (fanless)
DGS-1210-10P: 10-Port Gigabit PoE Smart Managed Switch (8 x PoE ports, fanless)
DGS-1210-20: 20-Port Gigabit Smart Managed Switch including .4 SFP ports (fanless)
DGS-1210-28: 28-Port Gigabit Smart Managed Switch including .4 SFP ports (fanless)

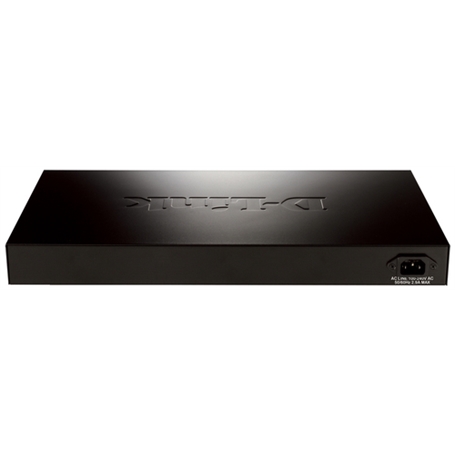

DGS-1210-28P: 28-Port Gigabit PoE Smart Managed Switch including .4 SFP ports (24 x PoE ports, fan)
DGS-1210-28MP: .28-Port Gigabit Max PoE Smart Managed Switch including .4 SFP ports (24 x PoE ports, fan)
DGS-1210-52: 52-Port Gigabit Smart Managed Switch including .4 SFP ports (fan)
DGS-1210-52P: 52-Port Gigabit PoE Smart Managed Switch including .4 SFP ports (24 x PoE ports, fan)
DGS-1210-52MP: 52-Port Gigabit Max PoE Smart Managed Switch including .4 SFP ports (48 x PoE ports, fan)

Features

Green Technology

Power saving via the following features:
- Link Status detection
- LED Shut-Off
- Port Shut-Off
- System Hibernation
- Time-based PoE (DGS-1210-10P/28P/52P/52MP only)

Security Features

Access Control List secures network

D-Link Safeguard Engine protects CPU from Broadcast/Multicast/Unicast Flooding

Port Security supports 64 MACs per port

ARP Spoofing Prevention

Intuitive Management

D-Link Network Assistant Utility or Web-based GUI

Built-in SNMP MIB for remote NMS (D-View 6.0)

Compact CLI through Telnet

Advanced Features

Auto Surveillance VLAN

Loopback Detection automatically disables a port when a loop is detected

Cable Diagnostics allows administrators to determine cable status

SFP ports for flexibility

Auto MDI/MDIX .

Interface
 .

Number of 10/100/1000BASE-TX ports

DGS-1210-10/10P - 8 ports
DGS-1210-20 - 16 ports
DGS-1210-28/28P/28MP - 24 ports
DGS-1210-52/52P/52MP - 48 ports

 .

Number of SFP ports

DGS-1210-10/10P - 2 .ports
DGS-1210-20/28/28P/28MP/52/52P/52MP - 4 ports

 .

PoE Supported Models (Standard(s)/Number of Ports/Maximum Power Budget)

DGS-1210-10P (802.3af/802.3at/8 ports/78W)
DGS-1210-28P (802.3af/802.3at/24 ports/193W)
DGS-1210-28MP (802.3af/802.3at/24 ports/370W)
DGS-1210-52P (802.3af/802.3at/24 ports/193W)
DGS-1210-52MP (802.3af/802.3at/52 ports/370W)

 .

Performance
 .

Switch Capacity

DGS-1210-10/10P - 20 Gbps
DGS-1210-20 - 40 Gbps
DGS-1210-28/28P/28MP - 56 Gbps
DGS-1210-52/52P/52MP - 104 Gbps

 .

64-Byte Packet Forwarding Rate

DGS-1210-10/10P - 14.88 Mpps
DGS-1210-20 - 29.8 Mpps
DGS-1210-28/28P/28MP - 41.7 Mpps
DGS-1210-52/52P/52MP - 77.4 Mpps

 .

MAC Address Table Size

16K

 .

Packet Buffer

DGS-1210-10P - 1 MB per device
DGS-1210-10/20/28/28P/28MP - 1.5 MB per device
DGS-1210-52/52P/52MP - 3 MB per device

 .

Jumbo Frame

Up to .9,216 Bytes

 .

Physical &. Environmental
 .

Power Consumption (Standby/Maximum)

DGS-1210-10 - 9.4W / 13.59W
DGS-1210-10P - 17.9W / .103.4W (PoE on)
DGS-1210-20 - 8.8W / 16.9W
DGS-1210-28 - 17.84W / 22.45W
DGS-1210-28P - 26.3W / 251.3W (PoE)
DGS-1210-28MP - 33.1W / 454.4W (PoE)
DGS-1210-52 - 29.49W / .38.27W
DGS-1210-52P - 46.50W / 270.2W (PoE)
DGS-1210-52MP - 48.9W / 483.1W (PoE)

Power Input

10 to 240 VAC, 50/60HZ internal universal power supply

 .

Dimensions (W x D x H)

DGS-1210-10 - 280 x .126 x 44 mm
DGS-1210-10P - .280 x 180 x 44 mm
DGS-1210-20 - .280 x .180 x 44 mm
DGS-1210-28 - 440 x 140 x 44 mm
DGS-1210-28P - 440 x 210 x 44 mm
DGS-1210-28MP - 440 x 250 x 44 mm
DGS-1210-52 - 440 x 210 x 44 mm
DGS-1210-52P .- 440 x .430 x 44 mm .
DGS-1210-52MP .- 440 x .430 x 44 mm .

 .

Weight

DGS-1210-10 - 1.54 kg
DGS-1210-10P - 1.86 kg
DGS-1210-20 - .1.28 kg
DGS-1210-28 - 1.67 kg
DGS-1210-28P - 2.54 kg
DGS-1210-28MP - 3.86 kg
DGS-1210-52 - 2.58 kg
DGS-1210-52P - 5.66 kg
DGS-1210-52MP - .5.78 kg

Ventilation

DGS-1210-10 - faneless
DGS-1210-10P - fanless
DGS-1210-20 - fanless
DGS-1210-28 - fanless
DGS-1210-28P - .smart fans
DGS-1210-28MP - .smart fans
DGS-1210-52 - .smart fans
DGS-1210-52P - smart fans
DGS-1210-52MP - smart fans

 .

Heat Dissipation

DGS-1210-10 - 46.37 BTU per hour
DGS-1210-10P - 330.96 BTU per hour
DGS-1210-20 - .54.91 BTU per hour
DGS-1210-28 - .76.56 BTU per hour
DGS-1210-28P - .840.89 BTU per hour
DGS-1210-28MP - 1,552.32 BTU per hour
DGS-1210-52 - .130.58 BTU per hour
DGS-1210-52P - 912.96 BTU per hour
DGS-1210-52MP - 1,648.23 BTU per hour

 .

Temperature

Operating: -5°. to 50°.C (23°. to 112°.F)
Storage: -20°. to 70°.C (-4°. to 158°.F )

 .

Humidity

Operating: 0% ~ 95% non-condensing
Storage: 0% ~ 95% non-condensing

 .

Certification

CE Class A, VCCI Class A, FCC Class A, cUL, CE (LVD), BSMI, CCC, C-Tick

 .

Software Feature

L2 Features

MAC Address Table  .16K entries

IGMP Snooping :
- IGMP v1/v2 Snooping
- Supports 256 IGMP groups
- Supports at least 64 static multicast addresses
- IGMP per VLAN
- Supports IGMP Snooping Querier

Loopback Detection

802.3ad Link Aggregation:
- DGS-1210 28/28P/28MP: . Maximum of 14 groups/8 ports per group
- DGS-1210 52/52MP/52P: Maximum of 26 groups/8 ports per group
- DGS-1210 -10/10P: Maximum of 5 groups/8 ports per group

LLDP

LLDP-MED

Jumbo Frame Up to 9,216 bytes

Spanning Tree Protocol:
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP (for DGS-1210-28MP only)

Flow Control:
- 802.3x Flow Control
- HOL Blocking Prevention

Port Mirroring:
- One-to-One
- Many-to-One
- Supports Mirroring for Tx/Rx/Both

Multicast Filtering:
- Forwards all unregistered groups-
- Filters all unregistered groups

Configurable MDI/MDIX MLD snooping v1/v2 (256 groups)

VLAN

802.1Q

VLAN Group:
- Max. 256 static VLAN groups

Configurable VID from 1 - 4094

Asymmetric VLAN .

Auto Voice VLAN:
- Max. 10 user-defined OUI
- Max. 8 default OUI

Auto Surveillance VLAN

Quality of Service (QoS)

802.1p Quality of Service

8 queues per port

Queue Handling:
- Strict
- Weighted Round Robin (WRR)

Bandwidth Control
- Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbps) .

QoS based on:
- 802.1p Priority Queues
- DSCP
- ToS
- IPv6 Traffic Class
- TCP/UDP port

L3 Features

IP Interface:
- Supports 1 interface .

IPv6 Neighbor Discovery (ND)

Static Routing (for DGS-1210-28MP only):
- 64 IPv4 Static Route Entries
- 32 IPv4 Static Route Entries

Access Control List (ACL)

Max. 50 access list

Max. 768 rules shared by IPv4, MAC and IPv6

Each rule can only be associated with a single port

ACL based on:
- 802.1p priority
- VLAN
- MAC address
- Ether type
- IP address
- DSCP
- Protocol type
- TCP/UDP port number
- IPv6 Traffic Class

Security

Broadcast/Multicast/Unicast Storm Control

D-Link Safeguard Engine

DHCP Server Screening

IP-MAC-Port Binding (Smart Binding):
- Supports 512 address binding entries
- ARP Inspection
- ARP + IP Inspection
- Supports DHCP Snooping

802.1X Port-based Access Control .

ARP Spoofing Prevention Max. 64 entries

Traffic Segmentation

SSH v2

SSL  .Supports v1/v2/v3

Port Security  .Supports up to 64 MAC addresses per port

Duplicate address detection

AAA

802.1X Authentication

Supports local/RADIUS database

Supports port-based access control

Supports EAP, OTP, TLS, TTLS, PEAP .

IPv6 RADIUS Server

Support MD5 authentication

MIB/RFC Standards

RFC 783 TFTP

RFC 951 BootP/DHCP Client

RFC 1157 SNMP v1, v2, v3

RFC 1213 MIB II

RFC 1215 MIB Traps Convention

RFC 1350 TFTP

RFC 1493 Bridge MIB

RFC 1769 SNTP

RFC 1542 BootP/DHCP Client

RFC 1901 SNMP v1, v2, v3

RFC 1907 SNMP v2 MIB

RFC 1908 SNMP v1, v2, v3

RFC 2131 BootP/DHCP Client

RFC 2138 RADIUS Authentication

RFC 2139 RADIUS Authentication

RFC 2233 Interface Group MIB .

RFC-2246 SSL

RFC 2475

RFC 2570 SNMP v1, v2, v3

RFC 2575 SNMP v1, v2, v3

RFC 2598 CoS

RFC 2618 RADIUS Authentication

RFC 2819 RMON v1

RFC 2865 RADIUS Authentication

RFC 3164 System Log

RFC 3195 System Log

RFC 3411-17 SNMP

D-Link Private MIB

LLDP MIB

Zone Defense MIB

2233 Interface Group MIB

OAM

Cable Diagnostics .

Factory Reset

Management

Web-based GUI

D-Link Network Assistant Utility

Compact CLI

Telnet Server

TFTP Client

Configurable MDI/MDIX

SNMP Supports v1/v2c/v3

SNMP Trap

Backup/Upgrade firmware

Smart Wizard

Upload/Download Configuration file .

System Log Max. 500 log entries

BootP/DHCP Client

SNTP

ICMP v6

IPv4/v6 Dual Stack

DHCP Auto Configuration

Time Setting SNTP

RMONv1

Trusted Host

Green V3.0 Technology

Power Saving by:

Link Status

Time-based PoE: PoE ports can be turned on/off by port or system through schedule .

LED Shutoff

System Hibernation

Port Shutoff
