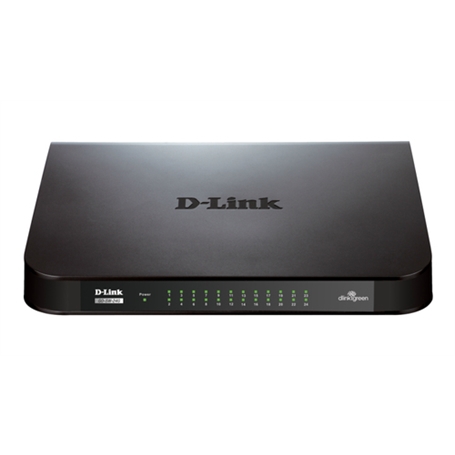

D-Link no gestito gigabit ethernet (10/100/1000) nero switch di rete

GO-SW-16G/24G 16/24-Port Gigabit Easy Desktop Switch


Panoramica


The dlinkgo GO-SW-24G 24-Port Unmanaged Gigabit Switch wich offer an economical way for SOHO and small to medium businesses (SMB) to deploy an energy-efficient switch that benefits from the increased bandwidth of Gigabit Ethernet.


Gigabit on Every Port

The 16/24-Port Gigabit Easy Desktop Switch series brings the speed of Gigabit Ethernet to each and every port for a truly high-speed network.

You can transfer files and backup data faster, and enjoy stutter-free VoIP calls and multimedia streaming.

If your network has a mix of legacy and modern computing capabilities, each port allows for standard Ethernet, Fast Ethernet, or Gigabit Ethernet connections to provide full backward compatibility


Innovative Design

The sleek plastic case of the GO-SW-16G/24G series is an industry first for a high-performance SOHO/SMB switch. Using a compact desktop style helps generate heat dissipation levels that allow for a fanless design, making the switches silent and allowing greater flexibility to place the switches anywhere.

The 16/24-Port Gigabit Easy Desktop Switch series is small, lightweight, wall-mountable, and ideal for any business with big needs and a small budget.


Conserves Energy

The 16/24-Port Gigabit Easy Desktop Switch series helps you conserve energy automatically through several methods.

It automatically powers down ports that have no link, allowing the switch to save substantial amounts of power by cutting power usage for unused ports or any ports connected to computers that have been shut down.

It can also detect connected cable lengths, and adjusts power usage accordingly, helping you save energy without affecting networking performance.


Think Green

The GO-SW-16G/24G 16/24-Port Gigabit Easy Desktop Switch series makes use of D-Link Green Ethernet technology, providing more energy savings and a longer product life, without sacrificing operational performance or functionality.

These environmentally friendly switches are also RoHS compliant, use recyclable packaging, and minimize the use of harmful substances.




Specifiche


Features


Physical

16 or 24 Gigabit Ethernet ports for fast network speeds
Industry-first plastic case for better heat dissipation and a compact size

Fanless design for silent operation


Performance

IEEE 802.3x Flow Control
Auto MDI/MDI-X crossover for all ports
Full/half-duplex for Ethernet/Fast Ethernet speeds
Supports 9,216 Bytes Jumbo Frames


Energy Efficiency

Innovative D-Link Green Ethernet Technology conserves energy
Link status detection reduces power usage
Cable length detection uses energy more efficiently
802.3az EEE hardware implementation reduces power consumption significantly
RoHS compliant


Easy Installation

Plug-and-play installation saves you time



Technical Specifications


General

Number of Ports:
GO-SW-24G - Twenty-four 10/100/1000 Gigabit ports


Standards

IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control


Data Tranfer Rates

Ethernet:
10 Mbps (half duplex)
20 Mbps (full duplex)

Fast Ethernet:
100 Mbps (half duplex)
200 Mbps (full duplex)

Gigabit Ethernet:
2000 Mbps (full duplex)


Network Cables

10BASE-T:
UTP CAT 3, 4, 5/5e (100 m max)
EIA/TIA-586 100-ohm STP (100 m max)

100BASE-TX, 1000BASE-T:
UTP CAT 5/5e (100 m max)
EIA/TIA-568 100-ohm STP (100 m max)



Functionality


D-Link Green Features

IEEE 802.3az Energy Efficient Ethernet (EEE)
Link status detection power saving
Cable length detection power saving
RoHS Compliance


LAN Features

Back pressure at half-duplex operation
Auto MDI/MDIX
Wire speed reception and transmission
Store-and-Forward switching method
8K MAC addresses
2 Mbits RAM for data buffering
Jumbo Frames: 9216 Bytes
Switching Capacity GO-SW-24G - 48 Gbps


Port Packet Filtering

10M: 14,880 pps
100M: 148,800 pps
1000M: 1,488,000 pps



Physical


LEDs

Power LED
GO-SW-24G - 24 Link/Activity/Speed LEDs (one per port)

Power Inputs GO-SW-24G - Switching 12V/1.5A level V power adapter



Power Consumption

Power on (standby): GO-SW-24G - AC input: 4.94 Watts

Power max.: GO-SW-24G - AC input: 15.7 Watts


Heat Dissipation


Power on (Standby): GO-SW-24G - AC input: 16.86 BTU/h

Power max.: GO-SW-24G - AC input: 53.58 BTU/h

MTBF GO-SW-24G – 336,072 hours

Dimensions GO-SW-24G - 257 x 178 x 46 mm (10.1 x 7.0 x 1.8 inches)

Weight GO-SW-24G0.76 kg (1.68 pounds)

Operating Temperature 0 to 40 °C (32 to 104 °F)

Storage Temperature -10 to 70 °C (14 to 158 °F)

Humidity 5% to 90% non-condensing


Certifications

FCC Class A
ICES-003 Class A
CE Class A
C-Tick Class A
CB
cUL
